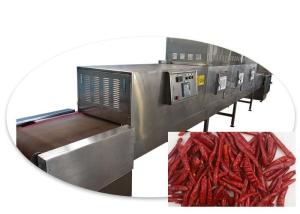

Stainless Steel Food Chili Drying Machine , Microwave Drying Equipment
Microwave of Stainless Steel Food Chili Drying Microwave Machine:
Microwave refers to an electromagnetic wave with a frequency of 300MHz~300GHz. It is an abbreviation of a limited frequency band in radio waves, that is, an electromagnetic wave with a wavelength between 1mm and 1m. It is a general term for decimeter wave, centimeter wave and millimeter wave. The microwave frequency is higher than the average radio wave frequency and is also commonly referred to as "ultra-high frequency electromagnetic wave". Microwave as an electromagnetic wave also has wave-particle duality. The basic properties of microwaves usually appear as three characteristics of penetration, reflection and absorption. For glass, plastic and porcelain, the microwave is almost traversed without being absorbed. For water and food, it absorbs microwaves and heats itself. For metal things, microwaves are reflected.
Technical Parameters:
| Machine Name |
Microwave drying machine |
| Total Power Input |
180kW |
| Model |
HD-120CD |
| Microwave Output Power |
120kW Tunnel structure, Power can be adjusted |
| Microwave Frequency |
2450MHz±50MHz |
| Dimensions |
18500×1450×1800㎜ |
| Height of Feeding |
60mm |
| Width of Conveyer Belt |
1200mm |
| Conveyor Speed |
0.5～10 m/min |
| Operating Temperature |
-5～40℃ |
| Surrounding |
Without corrosive gas, conductive dust and gas explosion |
| Wooden Cases |
Export standard fumigation wooden cases |
The drscription of feed microwave drying
Intelligent control system with independent intellectual property rights
Where the material is transported to, where the microwave source is turned on, and where the source is turned off, the source will not be over-dried or the material is not dry at the beginning and end of the material, which will reduce human operation and cause improper operation. Use intelligent control system with independent intellectual property rights instead of expensive PLC control to achieve the purpose of truly intelligent control.
Microwave description:
After adopting natural pollen produced by 2450MHz and 45KW tunnel type microwave drying and sterilizing machine, continuous production is realized, the production efficiency is increased by several times, the power saving is over 80%, the product quality is good, and the economic benefit is remarkable.
Microwave killing features:
| 1. Microwave killing speed is fast; only 3-5 minutes to complete the killing process; |
| 2. After the microwave is cured, the quality of the tea is improved, and the color, aroma and the selling phase are excellent; |
| 3. Semi-automatic flow-type operation, high degree of automation, saving labor and production costs; |
| 4. Energy saving and environmental protection, the microwave killing machine can kill 10 kilograms of tea in one hour. |
Applicable for
Microwave equipment is suitable for feed and fertilizer industry: protein feed, distiller's grain, soybean meal, peanut meal, bone meal, fish meal, fish feed, biological fertilizer, synthetic organic fertilizer, biological potassium fertilizer, nitrogen, phosphorus, potassium fertilizer
